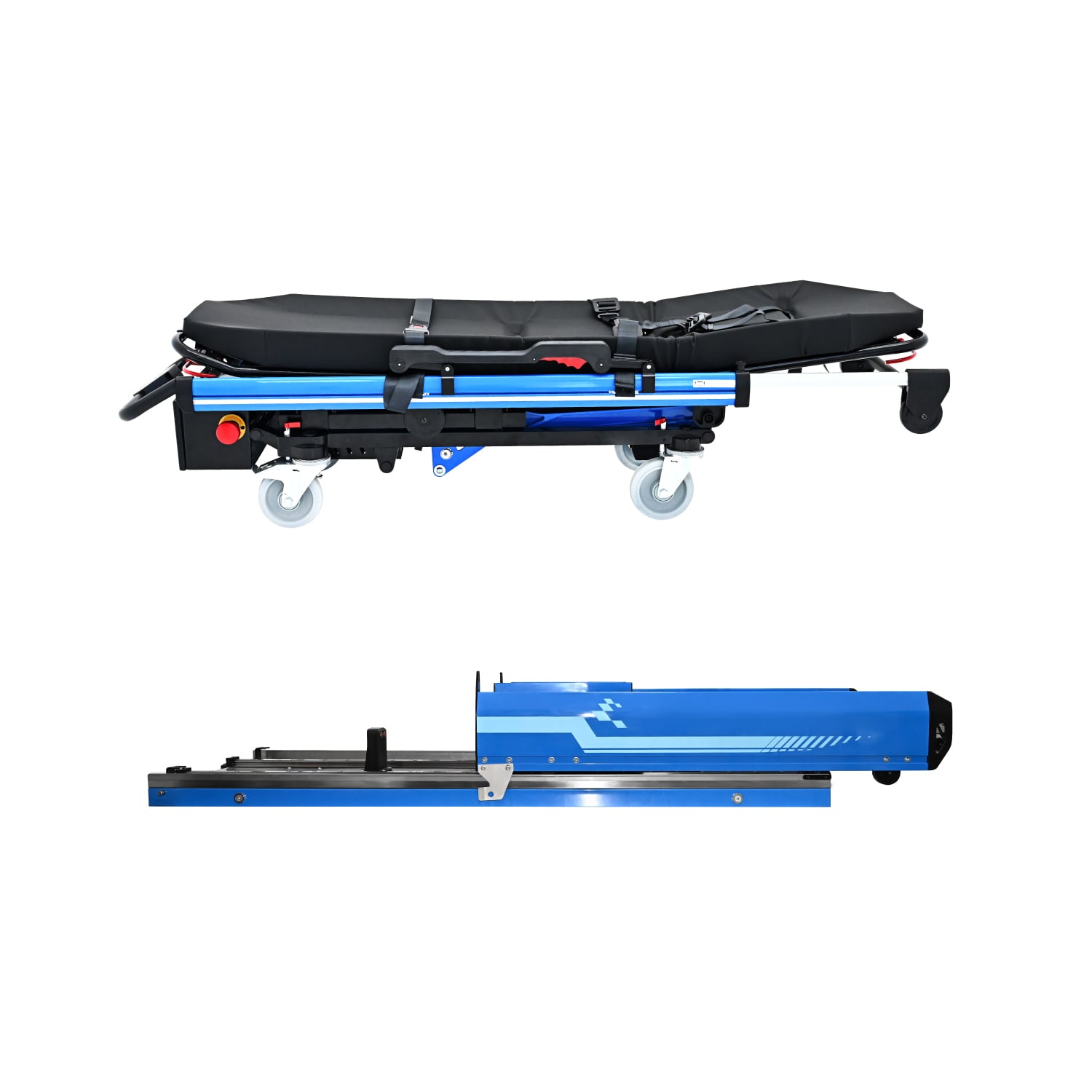

Dimensions (Length * Width * Height): ≥1950 * 550 * 1200 mm; The stretcher can be extended and retracted by 0-40 cm, facilitating access to narrower areas1.
Overall height adjustment range: 370 (±50 mm) ~ 1240 (±120 mm)2.
Length of back pad: ≥600 mm3.

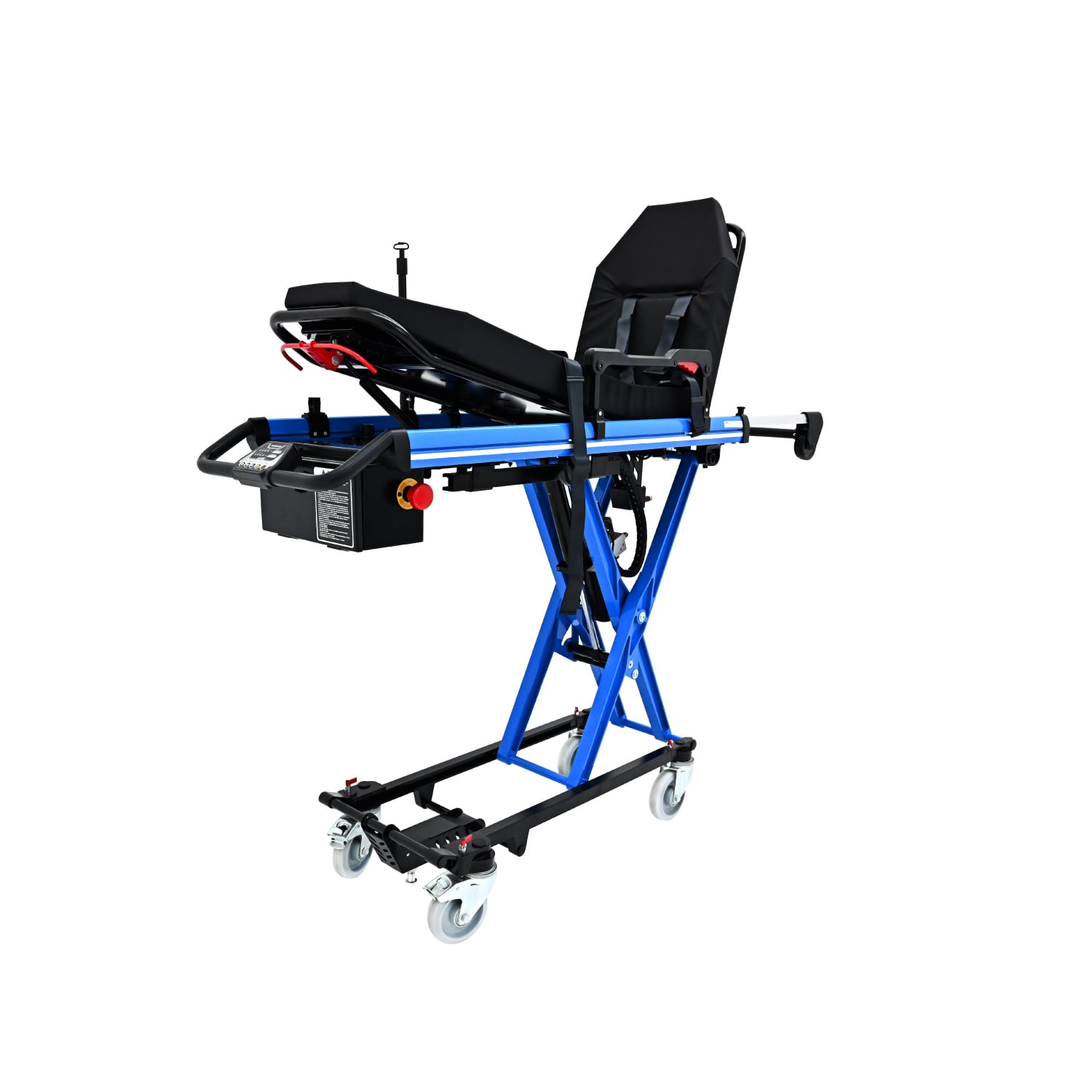

Maximum lifting angle of backrest pad: ≥75°, with stepless adjustment4.
Length of leg pad: ≥900 mm5.
Maximum lifting angle of leg pad: ≥15°, with stepless adjustment6.
Equipped with a manual pressure relief device, suitable for use when there is a power shortage or motor failure7.

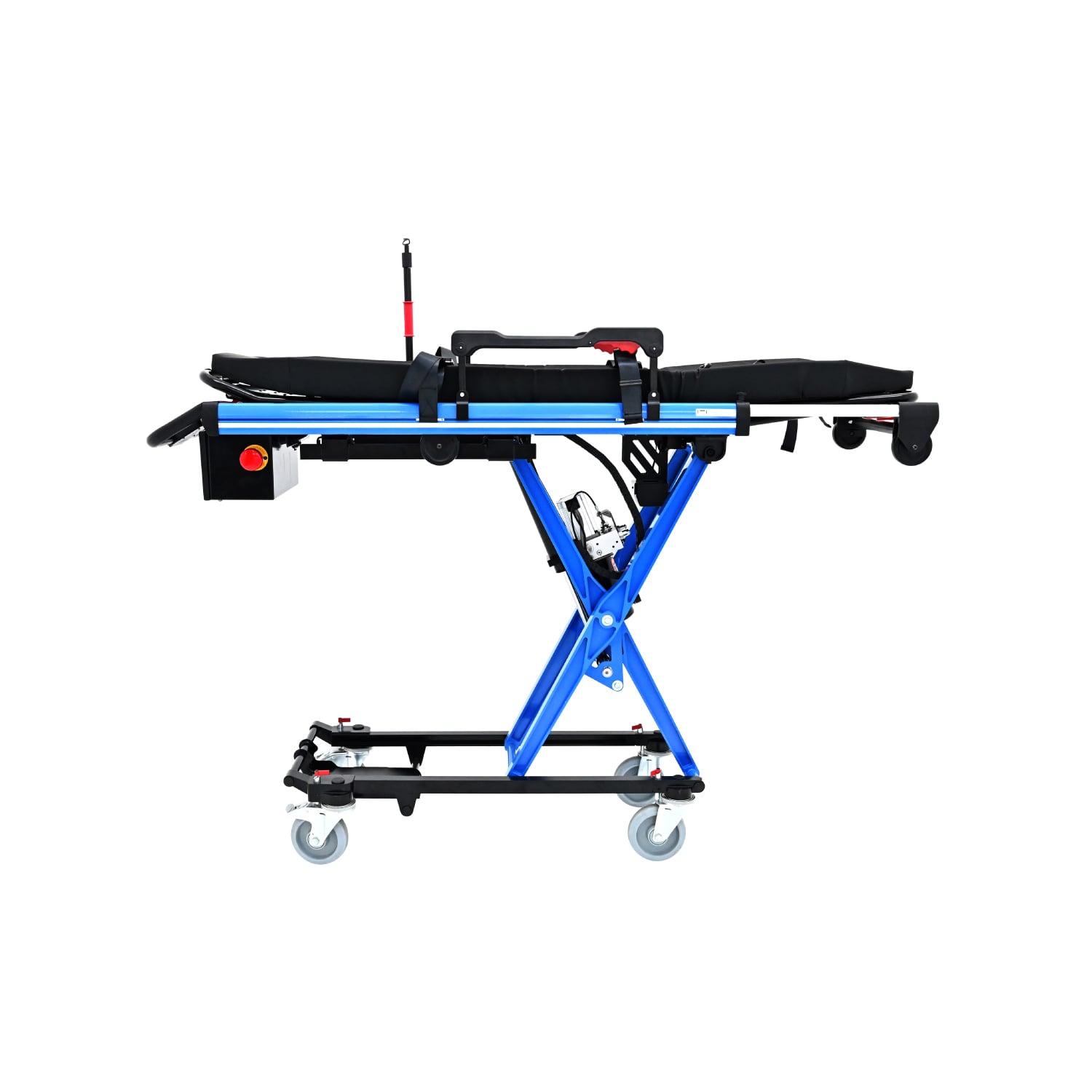

The entire stretcher is made of high-strength aluminum alloy material, with an X-type supporting leg folding mechanism in its structural design; The mattress is made of polyurethane material, which has good wear resistance, oil resistance, flexibility, chemical corrosion resistance and high elasticity8.
Driving mode of lifting mechanism: brushless motor drive9.
The stretcher is equipped with 4 universal wheels, and the diameter of the caster is ≥160 mm10.
Self-weight: ≤ 110 Kg11.
Maximum load-bearing capacity: ≥160 Kg12.
Standard configuration: two detachable lithium iron phosphate rechargeable batteries13.
Working power supply: DC25.6V, 2.5AH14.
Motor overcurrent protection: triple protection (motor driver protection + battery base protection + battery protection)15.
The time for the stretcher to be lifted from the lowest position to the highest position by electric drive is ≤8 seconds; The number of lifting/lowering times of a single battery under no-load condition is about 110 times, and about 70 times under load16.
Load-bearing capacity of telescopic infusion stand: ≥5 Kg17.
The armrest of the stretcher compartment is retractable18.

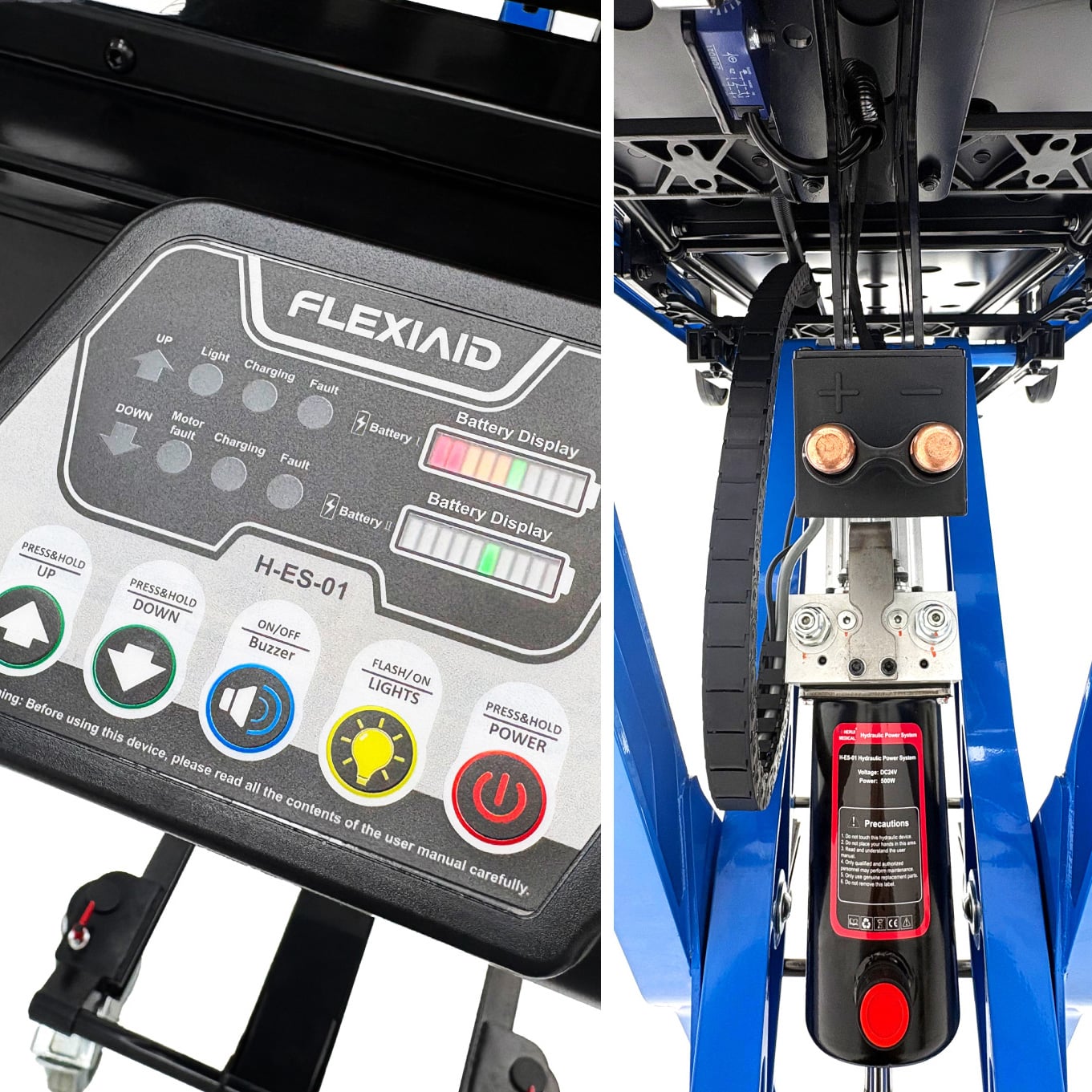

Warning function: light flashing + buzzer sound19.
