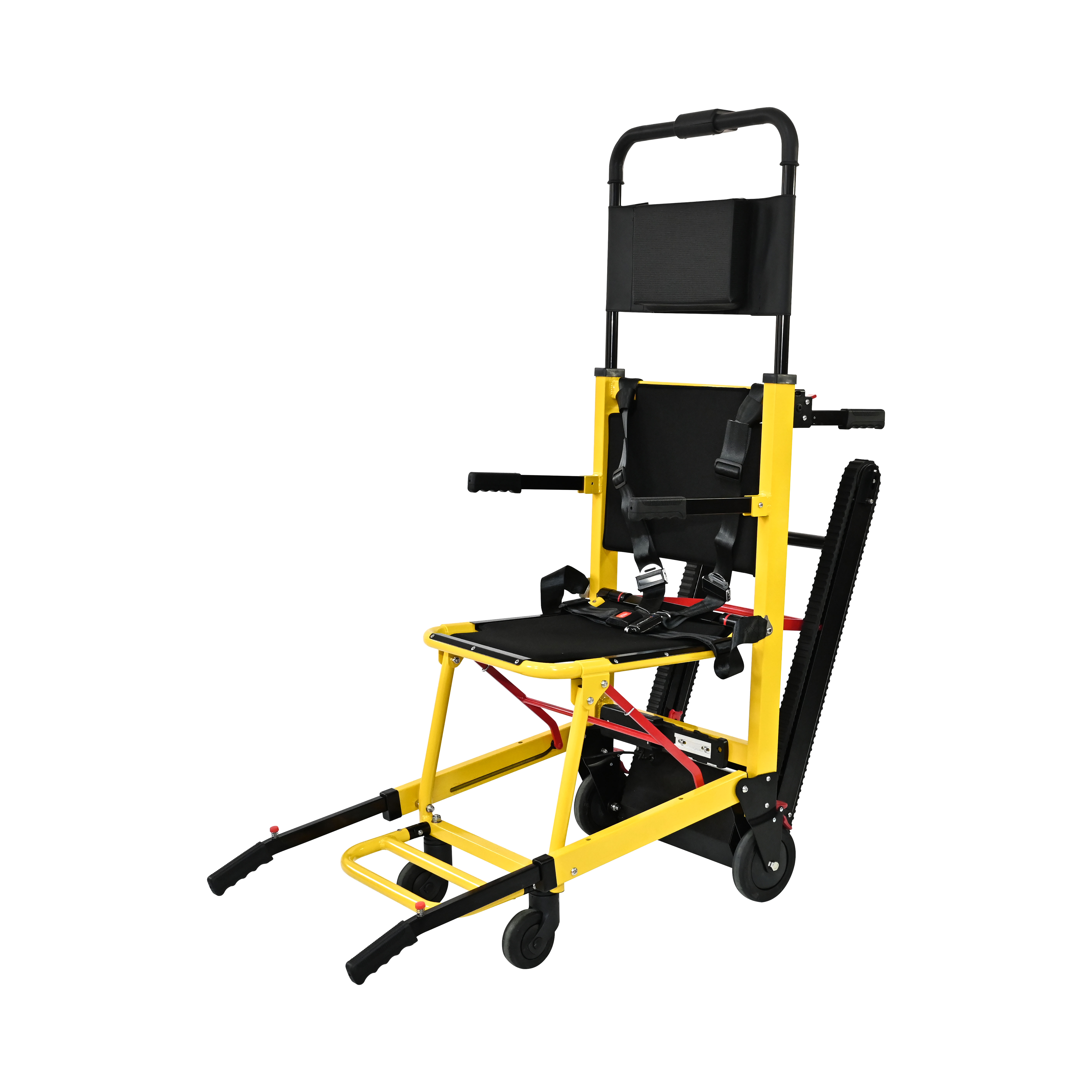

Power stair stretcher is designed for emergency evacuation and daily care scenarios. It is particularly suitable for the transfer of personnel in emergencies such as fire emergencies and power outages. It can also meet the needs of people with limited mobility to go up and down stairs in home scenarios. The device uses electric drive to replace traditional manual handling, and achieves smooth operation through an intelligent control system. It uses high-durability rubber tracks to easily transport people up and down stairs on almost any stair surface. It is an ideal choice for residential buildings, multi-story commercial and medical institutions, fire and emergency vehicles.
Designed for fast and safe stair evacuation in residential and commercial environments.
High-toughness rubber wheels are suitable for any outdoor environment.
Made of high-quality aluminum alloy material
120w high-power brushed motor
Equipped with large-capacity lithium battery, long battery life
Control device with color luminous light, clear and easy to read; customizable in multiple languages
Ergonomic rubber handle, 3D curved design fits the palm curve perfectly, surface texture increases friction, providing caregivers with additional control

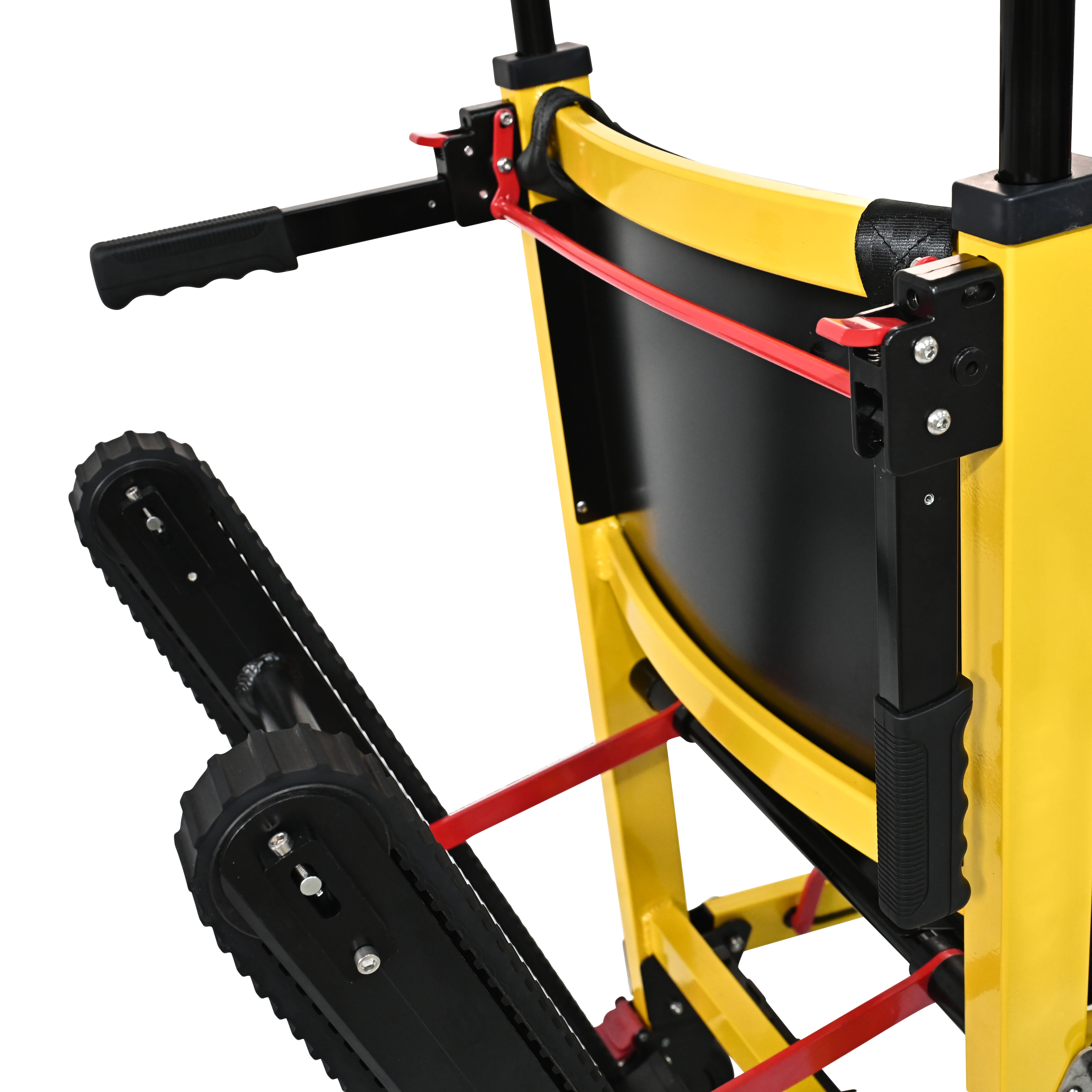

The back locking guide handle can be opened when needed for safe flat shifting
The telescopic pull rod can be easily adjusted according to the specific needs of the caregiver
Foldable foot pedal, thickened tube wall, with excellent load capacity, ensures safe transportation and increases comfort. Suitable for use in multiple scenarios such as home, office, and outdoor.

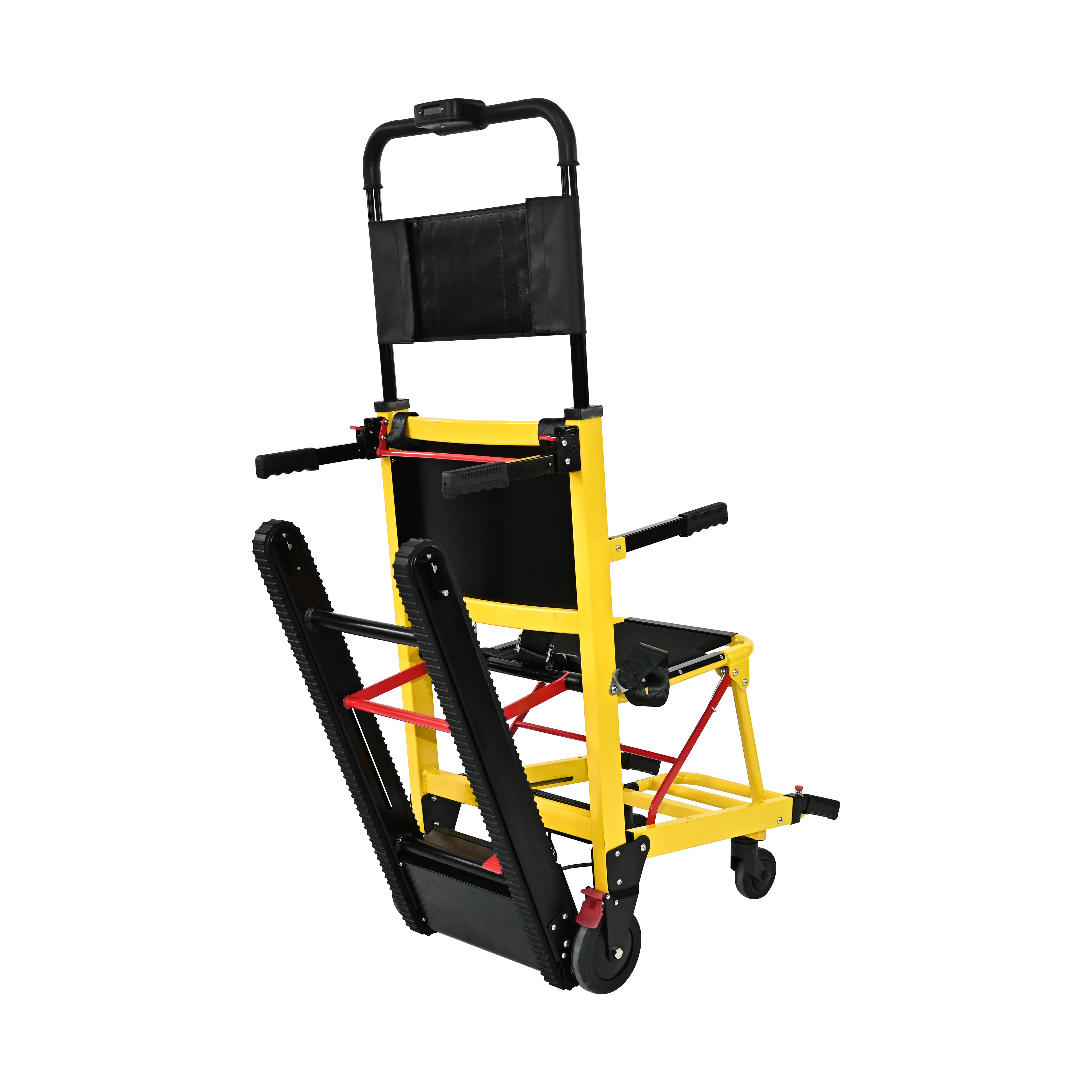

High-durability tracks provide non-slip traction on any surface and are equipped with a small wrench for track adjustment

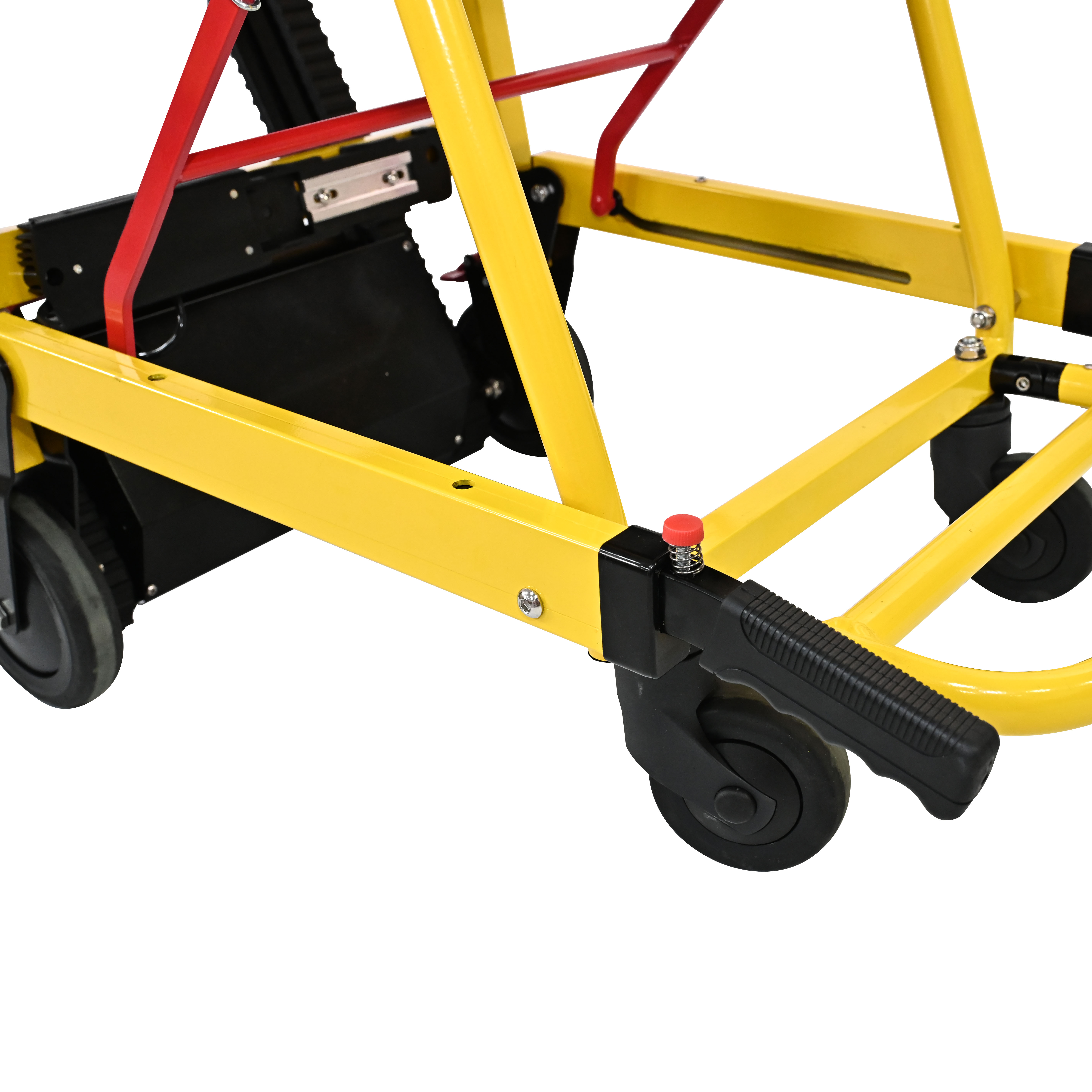

4-inch universal front casters increase the range of motion and turning radius, suitable for use in narrow spaces. All-plastic rubber wheels are suitable for uneven surfaces.
6-inch rear wheels with brakes can fix the stretcher on inclined roads

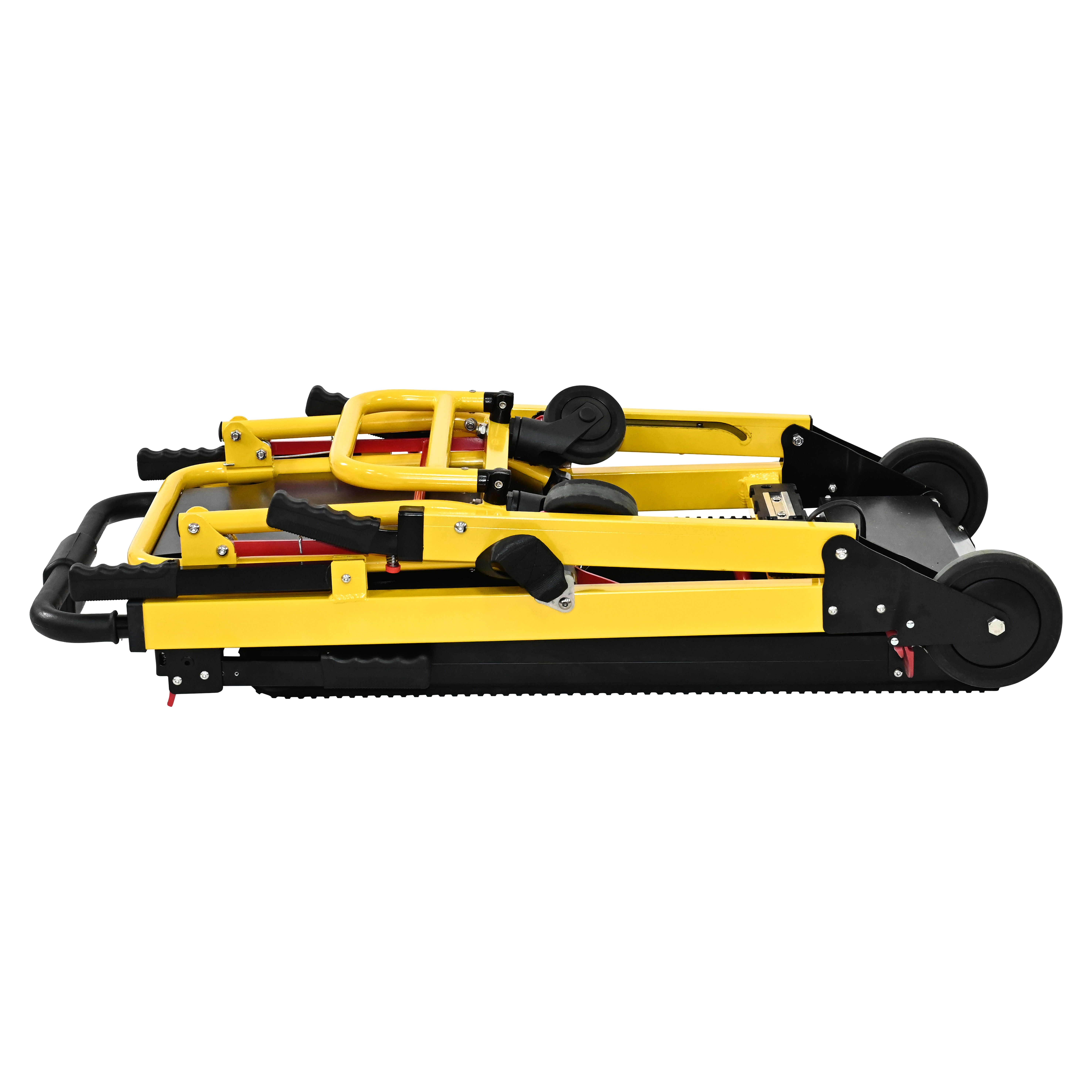

Easy to fold, compact size, easy to store in small spaces.

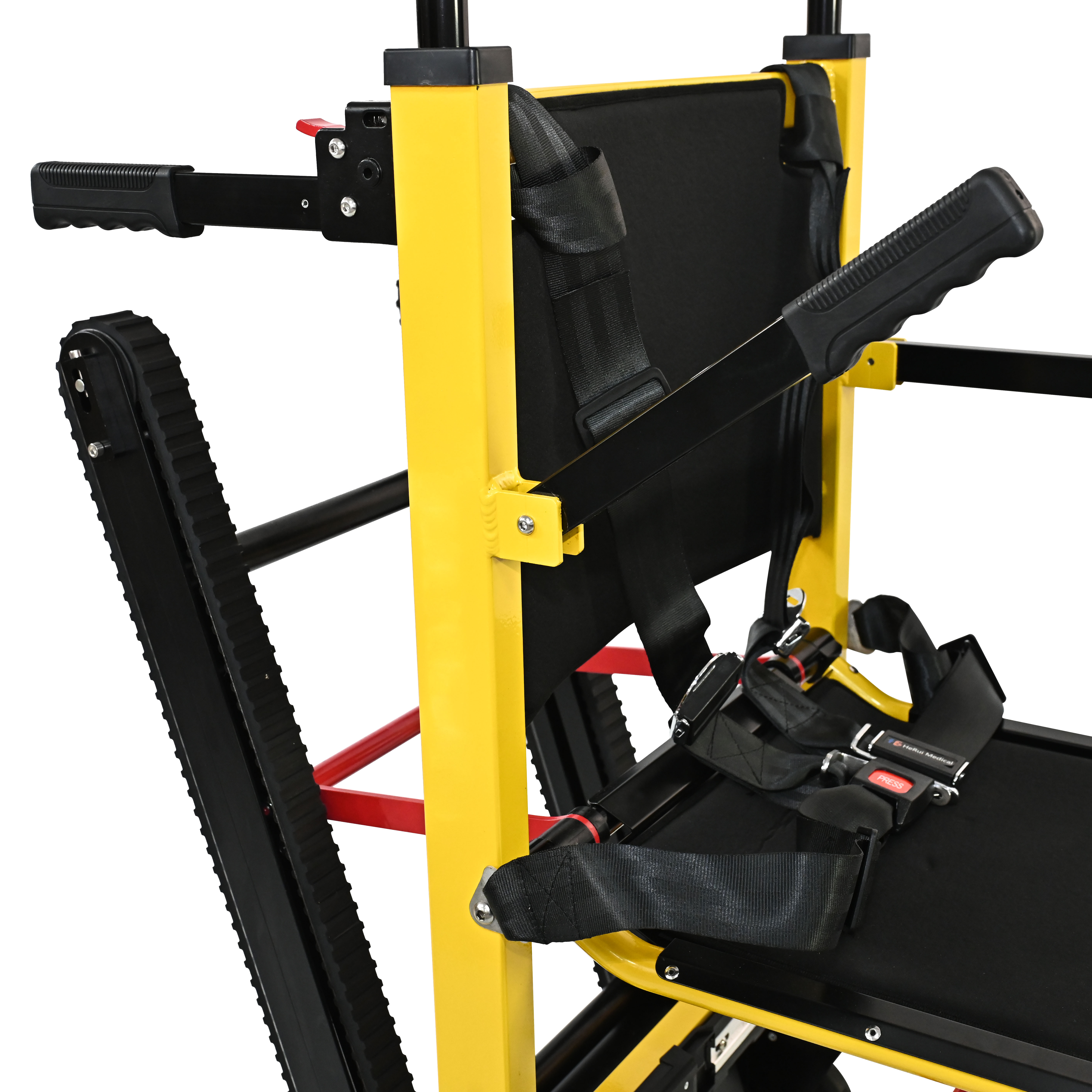

Equipped with a 4-point chest harness
Equipped with a head support kit, which can be easily removed for storage and easy to clean
Medical institutions (hospitals, rehabilitation centers)
Elderly care institutions and community service centers
Schools, shopping malls and other crowded places
Ambulance, Fire rescue vehicles and emergency command centers
High-end residences and villas, etc.
This product has passed the ISO13485 medical device quality management system certification and the EU CE safety certification, and is an important equipment choice for the construction of a modern emergency management system.
| Technical data | |
| Model | YHR-LD01 |
| Usage | Move a patient or loved one up and down a flight of stairs |
| Material | Durable aluminum alloy |
| Color | Yellow/Green/Red/Black/Blue/White/Gray |
| Seat | Aluminum board&Spongy Cushion |
| Size of seat | 41*45cm |
| height of seat | 52cm |
| Height of telescopic tie rod | H108cm,H127cm,H146cm,H164cm |
| Front handle expansion length | 15cm,35cm |
| Back folding handle length | 26cm |
| Track Angle | 20° |
| Castors | Front Dia.4" Back Dia.6" |
| Motor | 24V 120W brush motor/constant speed |
| Battery | 24V 13Ah Lithium-Ion Battery |
| Working time | Fully charged can work 1.5-2hours |
| Charger | 29.4V 2A |
| Dimension | 130×52×155cm |
| Folded | 110×52×28cm |
| N.W. | 34kg |
| Load bearing | Max.181kg (400 LBS) |
| Packing | 116×58×28cm;1set/Plywood case118*58*33cm;1set/CTN |
| G.W. | 46kg/43kg |
| Customizable items | |
| Color | Yellow/Blue/Green/Red/Black/White/Gray |
| Castors | 4"+6" |
| 6"+8" | |
| 6"+10" | |
| Motor | 24V 120W |
| 24V 200W | |
| Pusher | No/5000N |
